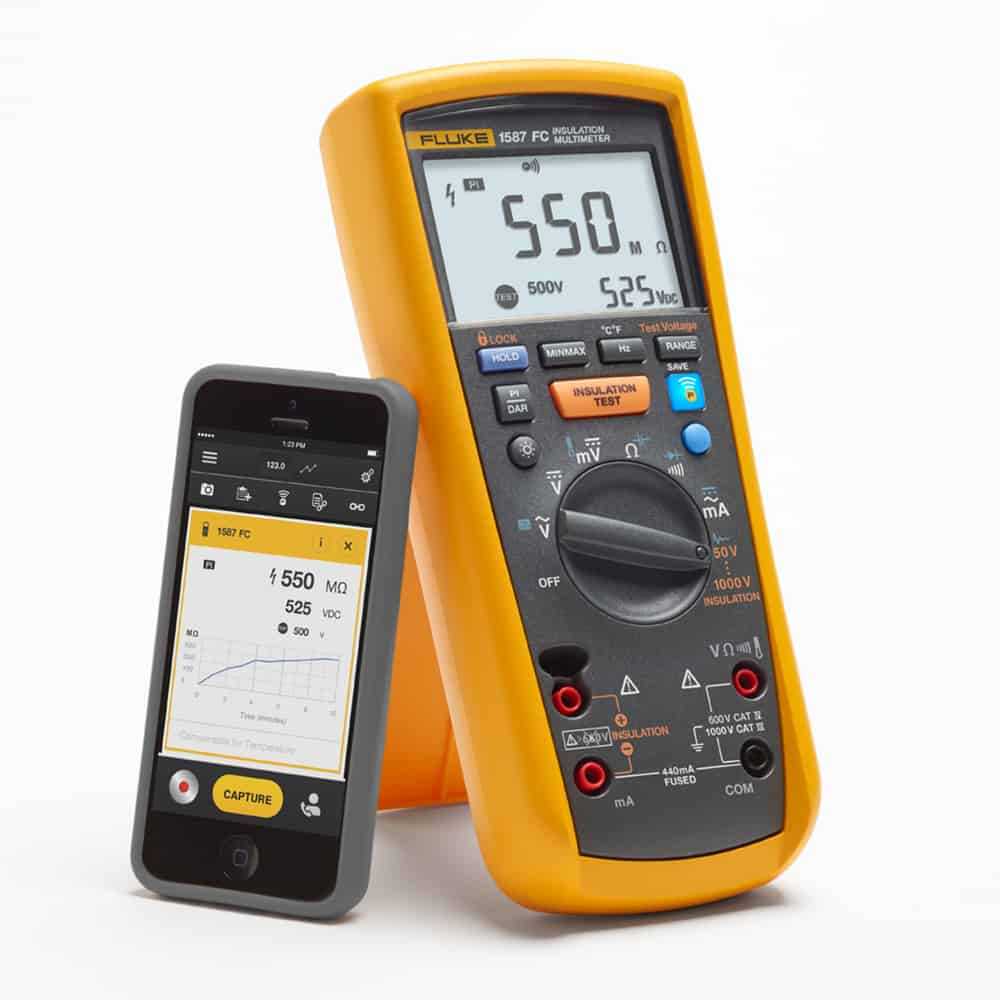

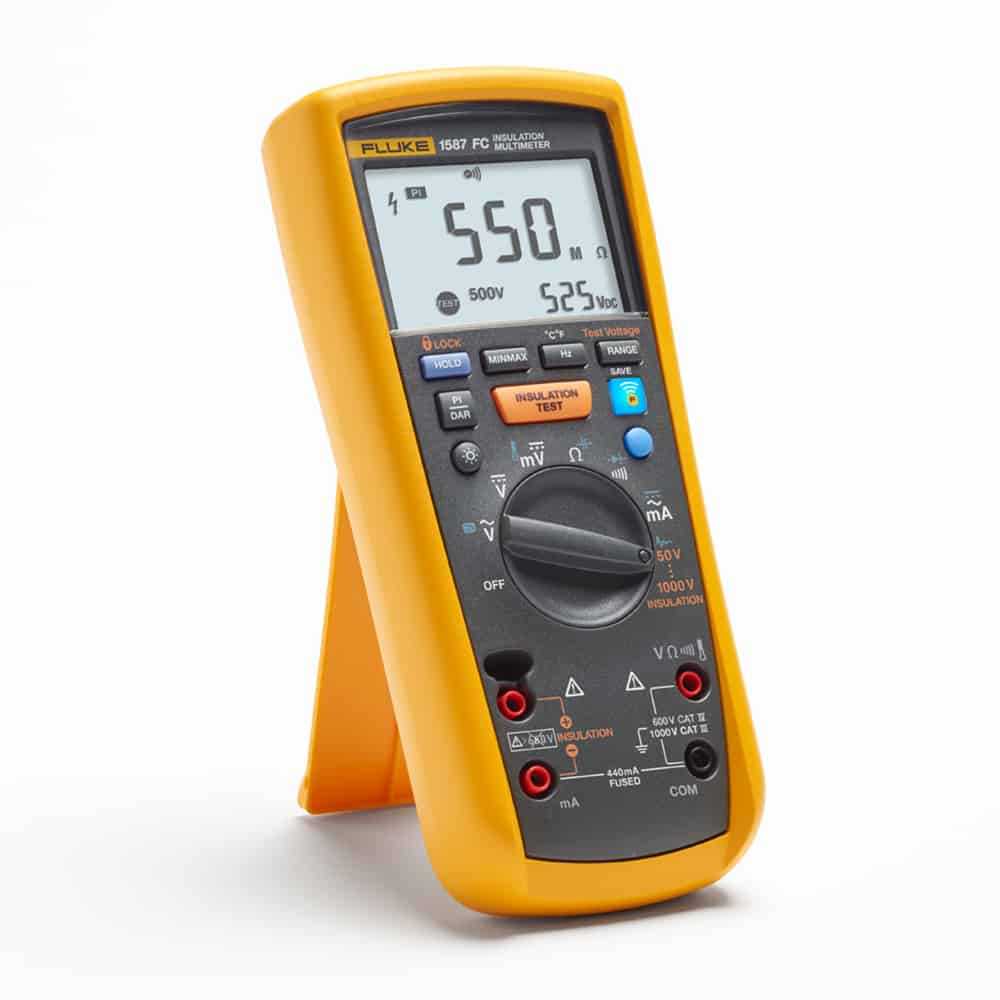

Fluke 1587FC Insulation Tester, CAT IV 600V, 600mV - 1000V is a product engineered with precision, delivering exceptional performance
with features like safety first Connect the insulation tester then keep yourself out of harm's way by monitoring your test measurements remotely, prove your job is done right by quickly seeing and sharing insulation resistance test results wirelessly with your smartphone and quickly find problems by saving and comparing measurements over time on a wireless device.
Maintive brings to you 100% genuine Insulation Testers from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 1587FC Insulation Tester, CAT IV 600V, 600mV - 1000V today at the best price only from Maintive.
Features

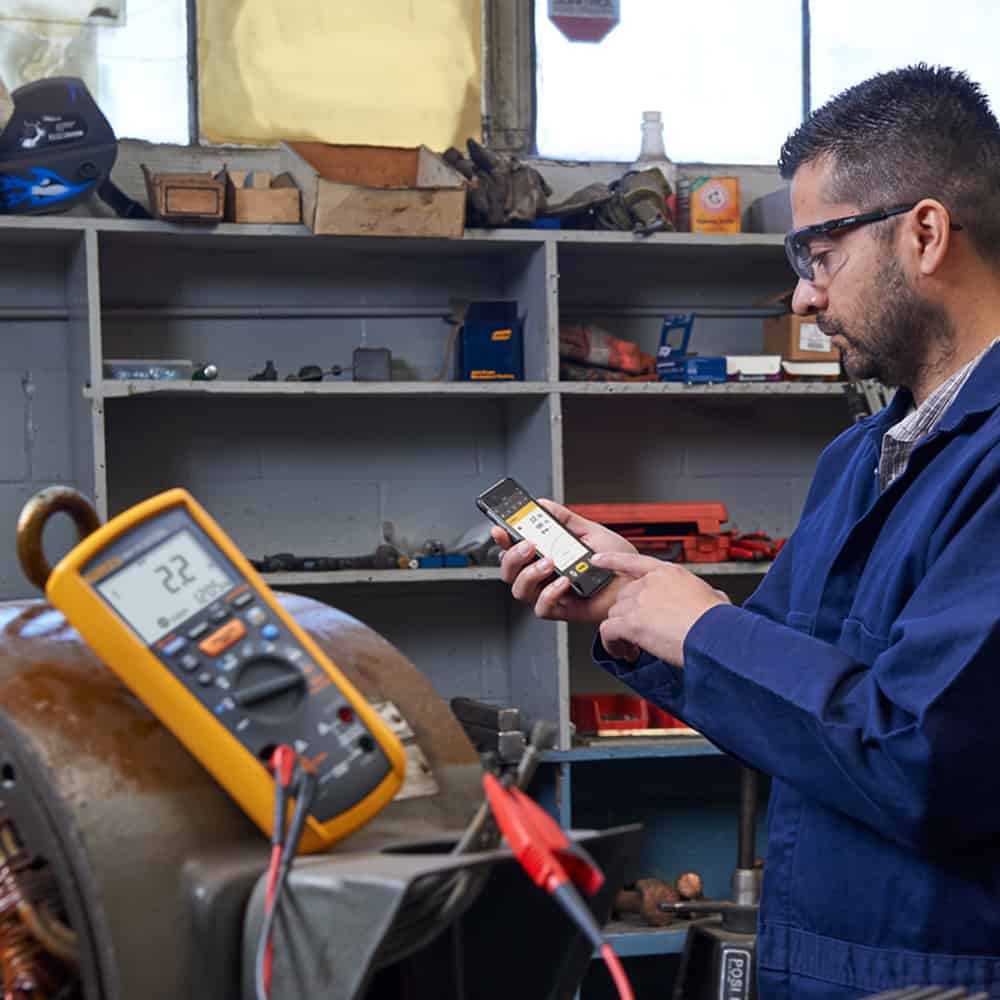

Safety first. Connect the insulation tester then keep yourself out of harm's way by monitoring your test measurements remotely.
Prove your job is done right by quickly seeing and sharing insulation resistance test results wirelessly with your smartphone.
Quickly find problems by saving and comparing measurements over time on a wireless device.
VFD low-pass filter for accurate motor drive measurements
PI/DAR timed ratio tests with TrendIt™ graphs to identify moisture and contaminated insulation problems faster
Memory storage through Fluke Connect that saves measurements to your phone or the cloud and eliminates the need to write down results. Reduces errors and saves data for historical tracking over time
Temperature compensation to establish accurate baselines and relevant historical comparisons
Provides memory storage through Fluke Connect Measurements to eliminate the need to write down results
Includes live circuit detection to prevent insulation test if voltage >30 V is detected

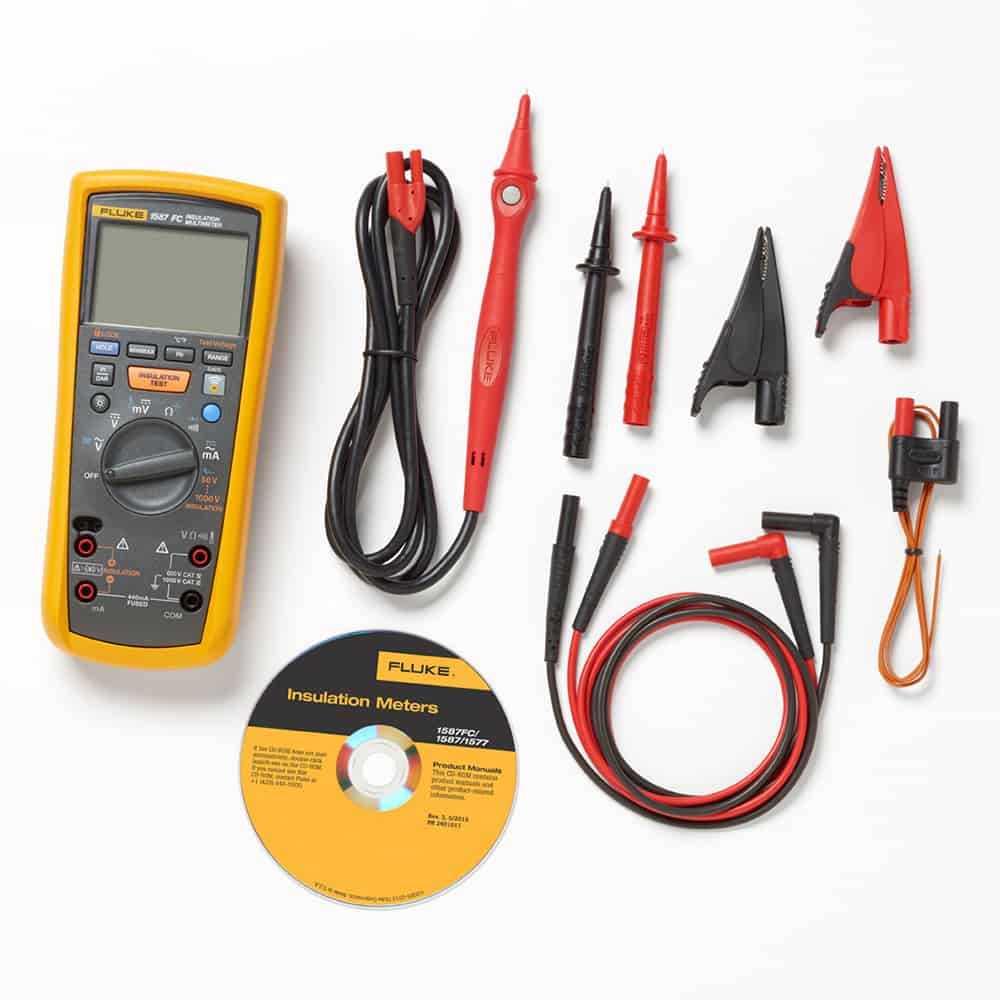

Items Included
Remote probe
Test leads
Alligator clips
K-type thermocouple
Hard case
User documentation
Specifications
DC Voltage6V - 1000V
AC Voltage600mV - 1000V
DC Current400mA (45 to 1000 Hz)
AC Current400mA (45 to 1000 Hz)
Resistance600Ω to 50 MΩ
Frequency99.99Hz - 99.99kHz
Capacitance1000nF - 9999μF
Temperature-40 to 537°C
Insulation Resistance0.01MΩ - 2GΩ
Safety RatingCAT IV 600V, CAT III 1000V
Storage temperature-40 °C to 60 °C (-40 °F to 140 °F)
Operating temperature-20 °C to 55 °C (-4 °F to 131 °F)
Temperature coefficient0.05 x (specified accuracy) per °C for temperatures <18 °C or >28 °C (<64 °F or >82 °F)
Relative humidityNoncondensing; 0% to 95% @ 10 °C to 30 °C (50 °F to 86 °F) 0% to 75% @ 30 °C to 40 °C (86 °F to 104 °F) 0% to 40% @ 40 °C to 55 °C (104 °F to 131 °F)
Warranty3 years manufacturer's warranty
DC Voltage6V - 1000V
AC Voltage600mV - 1000V
DC Current400mA (45 to 1000 Hz)
AC Current400mA (45 to 1000 Hz)
Resistance600Ω to 50 MΩ
Frequency99.99Hz - 99.99kHz
Capacitance1000nF - 9999μF
Temperature-40 to 537°C
Insulation Resistance0.01MΩ - 2GΩ
Safety RatingCAT IV 600V, CAT III 1000V
Storage temperature-40 °C to 60 °C (-40 °F to 140 °F)
Operating temperature-20 °C to 55 °C (-4 °F to 131 °F)
Temperature coefficient0.05 x (specified accuracy) per °C for temperatures <18 °C or >28 °C (<64 °F or >82 °F)
Relative humidityNoncondensing; 0% to 95% @ 10 °C to 30 °C (50 °F to 86 °F) 0% to 75% @ 30 °C to 40 °C (86 °F to 104 °F) 0% to 40% @ 40 °C to 55 °C (104 °F to 131 °F)
Warranty3 years manufacturer's warranty
